C2484 2SC2484

C2484 Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification 2SC2484 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 80V(Min). High Power Dissipation. Complement to Type 2SA1060 APPLICATIONS. Designed.

C2484 Applications

* Designed for high power audio frequency amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) i. cnSYMBOL PARAMETER VALUE UNIT . iscsemVCBO Collector-Base Voltage 80 V wwwVCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 5V IC Collector Current-Continuous 5 A ICM Col

📥 Download Datasheet

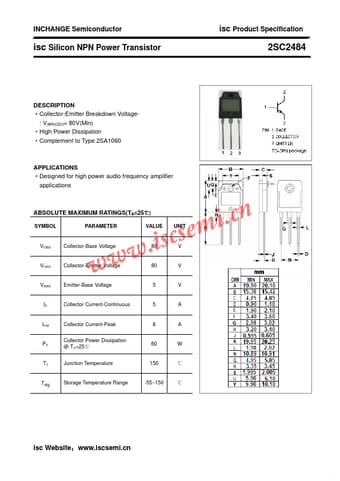

Preview of C2484 PDF
datasheet Preview Page 2

Datasheet Details

Part number
C2484
Manufacturer
INCHANGE
File Size
230.37 KB
Datasheet
C2484-INCHANGE.pdf
Description
2SC2484
