3DD159B - NPN Transistor

Description

With TO-3 packaging Large collector current Low collector saturation voltage High power dissipation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in DC-DC converter Driver of solenoid or motor ABS

📥 Download Datasheet

📁 Similar Datasheet

  • 3DD15 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 3DD1545 - NPN Transistor (Huajing Microelectronics)
  • 3DD155 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 3DD1555 - CASE-RATED BIPOLAR TRANSISTOR (JILIN SINO)
  • 3DD1555A - CASE-RATED BIPOLAR TRANSISTOR (JILIN SINO)
  • 3DD1555P - CASE-RATED BIPOLAR TRANSISTOR (JILIN SINO)
  • 3DD157 - Low-frequency silicon NPN power transistor (ETC)
  • 3DD15A - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 3DD15B - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 3DD15C - Silicon NPN Power Transistor (Inchange Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

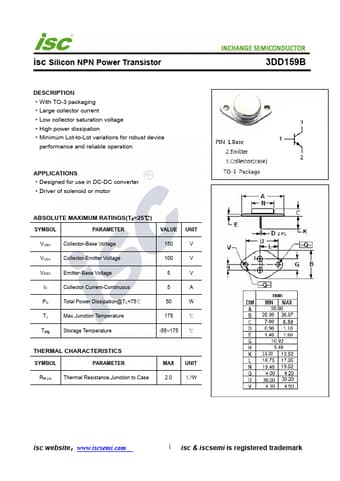

isc Silicon NPN Power Transistor INCHANGE Semiconductor 3DD159B DESCRIPTION ·With TO-3 packaging ·Large collector current ·Low collector saturation voltage ·High power dissipation ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in DC-DC converter ·Driver of solenoid or motor ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 5 A PD Total Power Dissipation@TC=75℃ 50 W TJ Max.Junction Temperature 175 ℃ Tstg Storage Temperature -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,Junction to Case MAX 2.
