2SK1466 - N-Channel MOSFET

The 2SK1466 by INCHANGE is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SK1466 N-Channel MOSFET datasheet (INCHANGE).

Datasheet Details

Part number 2SK1466
Manufacturer INCHANGE
File Size 197.05 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK1466-INCHANGE.pdf

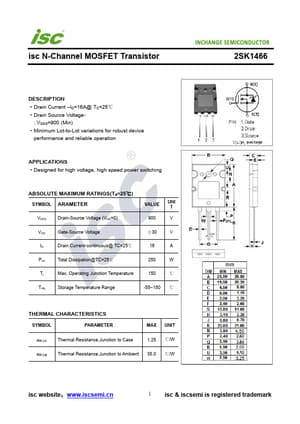

Additional preview pages of the 2SK1466 datasheet.

2SK1466 Product details

Description

Drain Current ID=16A@ TC=25℃ Drain Source Voltage- : VDSS=900 (Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS Drain-Source Voltage (VGS=0) VALUE UNI T 900 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 16 A Ptot Total Dissipation@TC=25℃ 250 W Tj Max.Operating Junct
