2SK1401 - N-Channel MOSFET

The 2SK1401 by INCHANGE is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

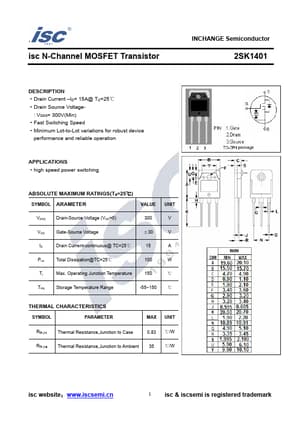

Official preview page of the 2SK1401 N-Channel MOSFET datasheet (INCHANGE).

Datasheet Details

Part number 2SK1401
Manufacturer INCHANGE
File Size 203.66 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK1401-INCHANGE.pdf
Additional preview pages of the 2SK1401 datasheet.

2SK1401 Product details

Description

Drain Current ID= 15A@ TC=25℃ Drain Source Voltage- : VDSS= 300V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 300 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 15 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max.Operating Junct
