2SD1885C - NPN Transistor

Description

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Color TV horizontal deflection output Color display horizontal deflection output ABSOLUTE M

📥 Download Datasheet

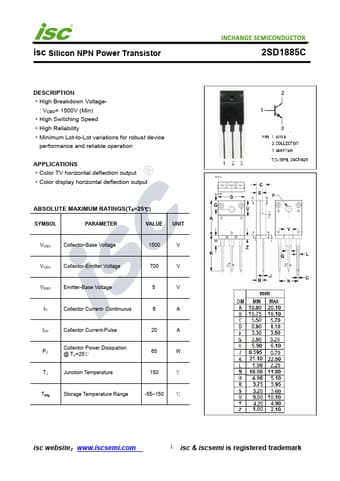

Datasheet preview – 2SD1885C

📁 Similar Datasheet

  • 2SD1885 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SD1885 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD188 - Silicon NPN Power Transistor (SavantIC)
  • 2SD1880 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SD1880 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1881 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SD1881 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1882 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SD1882 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1883 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor DESCRIPTION ·High Breakdown Voltage- : VCBO= 1500V (Min) ·High Switching Speed ·High Reliability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Color TV horizontal deflection output ·Color display horizontal deflection output ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 6 A ICP Collector Current-Pulse PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 20 A 65 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SD1885C isc website：www.iscsemi.
