2SD155 - NPN Transistor

Description

Low Collector Saturation Voltage : VCE(sat)= 1.0V(Max)@IC= 2A Collector-Emitter Breakdown Voltage- : V(BR) CEO= 80V(Min) Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency po

Inchange Semiconductor

📥 Download Datasheet

2SD155 npn transistor by INCHANGE - Datasheet Preview

Datasheet Details

Part number	2SD155
Manufacturer	Inchange Semiconductor
File Size	177.59 KB
Description	NPN Transistor
Datasheet	2SD155 Datasheet

📁 Similar Datasheet

2SD1550 - SILICON POWER TRANSISTOR (SavantIC)
2SD1551 - SILICON POWER TRANSISTOR (SavantIC)
2SD1553 - SILICON POWER TRANSISTOR (SavantIC)
2SD1554 - Silicon NPN Power Transistors (Savantic)
2SD1555 - Silicon NPN Power Transistors (SaventIC)
2SD1556 - SILICON POWER TRANSISTOR (SavantIC)
2SD1557 - NPN Transistor (ETC)
2SD1559 - Silicon NPN Transistor (Hitachi Semiconductor)
2SD1559 - SILICON POWER TRANSISTOR (SavantIC)
2SD1500 - Power Transistor (Inchange Semiconductor)

Other Datasheets by INCHANGE

2SD1550 - NPN Transistor
2SD1551 - NPN Transistor
2SD1552 - NPN Transistor
2SD1553 - NPN Transistor
2SD1554 - NPN Transistor
2SD1555 - NPN Transistor
2SD1556 - NPN Transistor
2SD1558 - NPN Transistor

Full PDF Text Transcription

Click to expand full text

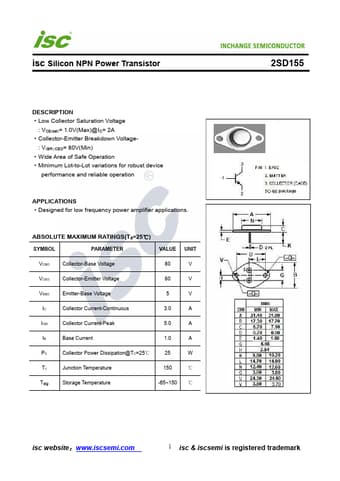

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD155 DESCRIPTION ·Low Collector Saturation Voltage : VCE(sat)= 1.0V(Max)@IC= 2A ·Collector-Emitter Breakdown Voltage- : V(BR) CEO= 80V(Min) ·Wide Area of Safe Operation ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 3.0 A ICM Collector Current-Peak 5.0 A IB Base Current 1.
