2SC3890 - NPN Transistor

The 2SC3890 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

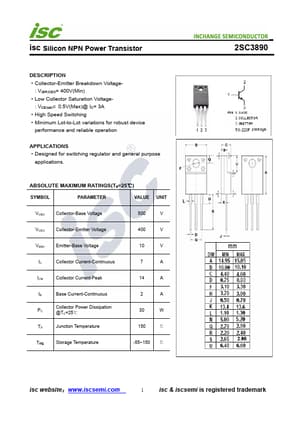

Official preview page of the 2SC3890 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC3890
Manufacturer INCHANGE
File Size 202.90 KB
Description NPN Transistor
Datasheet download datasheet 2SC3890-INCHANGE.pdf
Additional preview pages of the 2SC3890 datasheet.

2SC3890 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min) Low Collector Saturation Voltage- : VCE(sat)= 0.5V(Max)@ IC= 3A High Speed Switching Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulator and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Volt
