2SC2489 - Silicon NPN Power Transistor

Description

Good Linearity of hFE Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 150V (Min) Wide Area of Safe Operation Complement to Type 2SA1065 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for AF amplifier,high power amp

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC2480 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC2481 - Silicon NPN Transistor (Toshiba)
  • 2SC2481 - Power Transistor (Inchange Semiconductor)
  • 2SC2482 - NPN Transistor (Toshiba Semiconductor)
  • 2SC2482 - NPN Transistor (LGE)
  • 2SC2482 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2482 - NPN Transistor (UTC)
  • 2SC2482 - NPN Epitaxial Silicon Transistor (MCC)
  • 2SC2482-O - NPN Epitaxial Silicon Transistor (MCC)
  • 2SC2482-Y - NPN Epitaxial Silicon Transistor (MCC)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

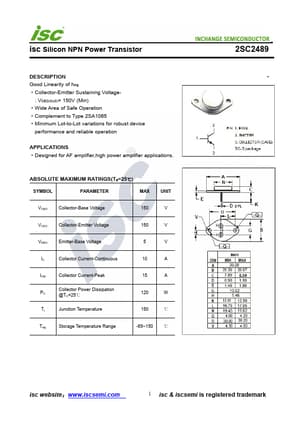

isc Silicon NPN Power Transistor DESCRIPTION Good Linearity of hFE ·Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 150V (Min) ·Wide Area of Safe Operation ·Complement to Type 2SA1065 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for AF amplifier,high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 150 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 10 A ICM Collector Current-Peak PC Collector Power Dissipation @TC=25℃ Tj Junction Temperature 15 A 120 W 150 ℃ Tstg Storage Temperature Range -65~150 ℃ 2SC2489 · isc website：www.iscsemi.
