2SC1868 - NPN Transistor

Product Overview

📥 Download Datasheet

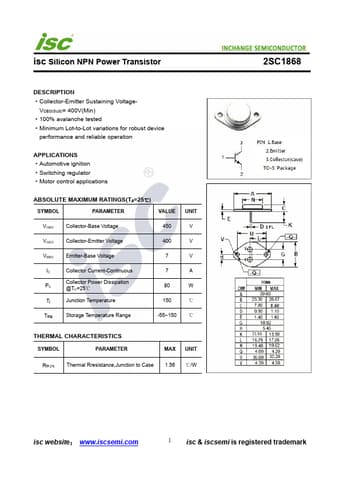

Datasheet preview – 2SC1868

Datasheet Details

Part number 2SC1868
Manufacturer INCHANGE
File Size 174.47 KB
Description NPN Transistor
Datasheet download datasheet 2SC1868 Datasheet
Additional preview pages of the 2SC1868 datasheet.

Product details

Description

Collector-Emitter Sustaining Voltage- VCEO(SUS)= 400V(Min) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Automotive ignition Switching regulator Motor control applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 450 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous PC Collect
