2SB547 - PNP Transistor

The 2SB547 by INCHANGE is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

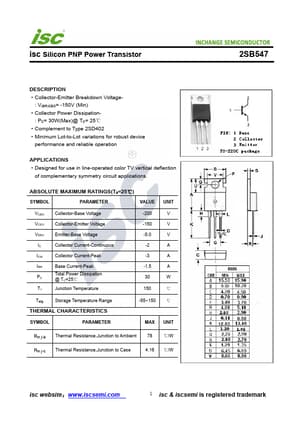

Official preview page of the 2SB547 PNP Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SB547
Manufacturer INCHANGE
File Size 181.59 KB
Description PNP Transistor
Datasheet download datasheet 2SB547-INCHANGE.pdf
Additional preview pages of the 2SB547 datasheet.

2SB547 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -150V (Min) Collector Power Dissipation- : PC= 30W(Max)@ TC= 25℃ Complement to Type 2SD402 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in line-operated color TV vertical deflection of complementary symmetry circuit applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO VCEO VEBO IC ICM IBM PC TJ Collector-Base Voltage Coll
