BU180A - isc Silicon NPN Darlington Power Transistor

📥 Download Datasheet

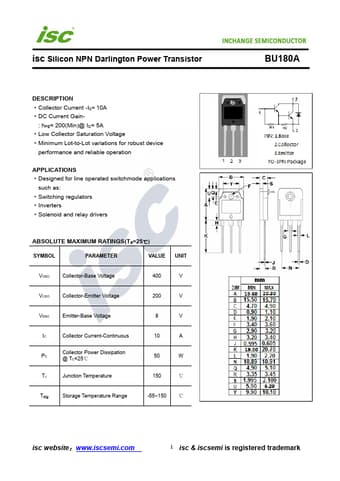

Preview of BU180A PDF
datasheet Preview Page 2

Datasheet Details

Part number BU180A
Manufacturer INCHANGE Semiconductor
File Size 215.89 KB
Description isc Silicon NPN Darlington Power Transistor
Datasheet download datasheet BU180A_INCHANGESemiconductor.pdf

BU180A Product details

Description

Collector Current -IC= 10A DC Current Gain- : hFE= 200(Min)@ IC= 5A Low Collector Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for line operated switchmode applications such as: Switching regulators Inverters Solenoid and relay drivers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 400 V VCEO Collector-Emitter Voltage 200 V
