BU180 - Silicon NPN Darlington Power Transistor

📥 Download Datasheet

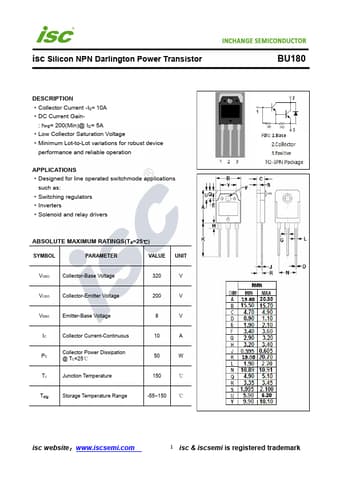

Preview of BU180 PDF
datasheet Preview Page 2

Datasheet Details

Part number BU180
Manufacturer INCHANGE Semiconductor
File Size 216.19 KB
Description Silicon NPN Darlington Power Transistor
Datasheet download datasheet BU180_INCHANGESemiconductor.pdf

BU180 Product details

Description

Collector Current -IC= 10A DC Current Gain- : hFE= 200(Min)@ IC= 5A Low Collector Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for line operated switchmode applications such as: Switching regulators Inverters Solenoid and relay drivers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 320 V VCEO Collector-Emitter Voltage 200 V
