EI16LC05 - Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network

IMP

The EI16LC05 by IMP is a Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network. Below is the official datasheet preview.

📥 Download Datasheet

EI16LC05 Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network by IMP - Datasheet Preview — Official preview page of the **EI16LC05** Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network datasheet (IMP).

Datasheet Details

Part number	EI16LC05
Manufacturer	IMP
File Size	62.02 KB
Description	Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network
Datasheet	EI16LC05_IMPInc.pdf

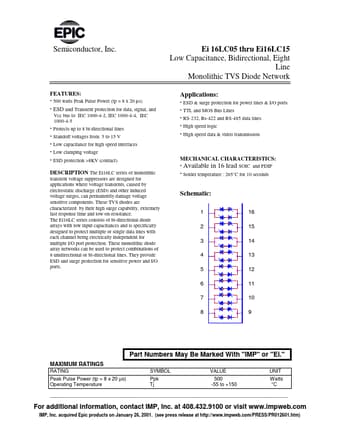

Additional preview pages of the EI16LC05 datasheet.

EI16LC05 Product details

Description

The Ei16LC series of monolithic transient voltage suppressors are designed for applications where voltage transients, caused by electrostatic discharge (ESD) and other induced voltage surges, can permanently damage voltage sensitive components.These TVS diodes are characterized by their high surge capability, extremely fast response time and low on-resistance.The Ei16LC series consists of bi-directional diode arrays with low input capacitances and is specifically designed to protect multiple o

Features

500 watts Peak Pulse Power (tp = 8 x 20 µs).
ESD and Transient protection for data, signal, and Vcc bus to IEC 1000-4-2, IEC 1000-4-4, IEC 1000-4-5.
Protects up to 8 bi-directional lines.
Standoff voltages from 5 to 15 V.
Low capacitance for high speed interfaces.
Low clamping voltage.
ESD protection >8KV (contact).
