EI16C450

The EI16C450 is Universal Asynchronous Receiver designed by IMP.

Product Overview

IMP

Part number	EI16C450
Manufacturer	IMP
File Size	30.89 KB
Description	Universal Asynchronous Receiver
Datasheet	EI16C450_IMPInc.pdf

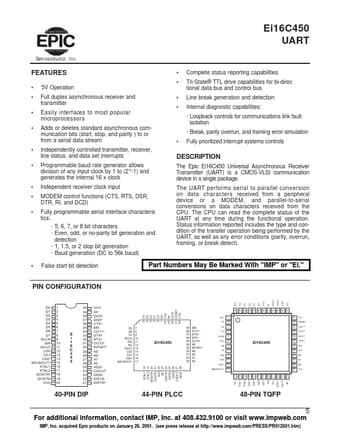

Additional preview pages of the EI16C450 datasheet.

The Epic Ei16C450 Universal Asynchronous Receiver Transmitter (UART) is a CMOS-VLSI communication device in a single package.

5V Operation Full duplex asynchronous receiver and transmitter Easily interfaces to most popular microprocessors Adds or deletes standard asynchronous communication bits (start, stop, and parity ) to or from a serial data stream Independently controlled transmitter, receiver, line status, and data set interrupts Programmable baud rate generator allows division of any input clock by 1 to (216-1) and generates the internal 16 x clock Independent receiver clo.
