LD1207L - 12/9 Segment Output Lines

IK Semiconductor

The LD1207L by IK Semiconductor is a 12/9 Segment Output Lines. Below is the official datasheet preview.

📥 Download Datasheet

LD1207L 12/9 Segment Output Lines by IK Semiconductor - Datasheet Preview — Official preview page of the **LD1207L** 12/9 Segment Output Lines datasheet (IK Semiconductor).

Datasheet Details

Part number	LD1207L
Manufacturer	IK Semiconductor
File Size	179.66 KB
Description	12/9 Segment Output Lines
Datasheet	LD1207L_IKSemiconductor.pdf

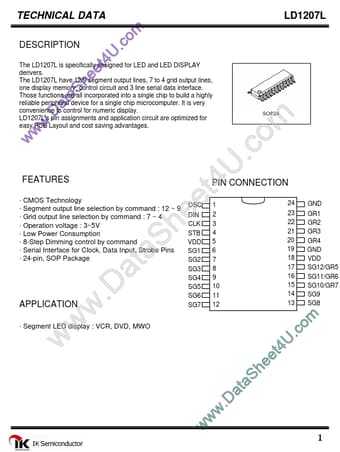

Additional preview pages of the LD1207L datasheet.

LD1207L Product details

Description

LD1207L The LD1207L is specifically designed for LED and LED DISPLAY derivers.The LD1207L have 12/9 segment output lines, 7 to 4 grid output lines, one display memory, control circuit and 3 line serial data interface.Those functions are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer.It is very convenience to control for numeric display.LD1207L’s pin assignments and application circuit are optimized for easy PCB Layout and co

Features

CMOS Technology.
Segment output line selection by command : 12 ~ 9.
Grid output line selection by command : 7 ~ 4.
Operation voltage : 3~5V.
Low Power Consumption.
8-Step Dimming control by command.
Serial Interface for Clock, Data Input, Strobe Pins.
24-pin, SOP Package.
