LD1207 - Led And Led Display Driver

Description

The LD1207 is specifically designed for LED and LED DISPLAY derivers.

The LD1207 have 12/9 segment output lines, 7 to 4 grid output lines, one display memory, control circuit and 3 line serial data interface.

Features

  • CMOS Technology.
  • Segment output line selection by command : 12 ~ 9.
  • Grid output line selection by command : 7 ~ 4.
  • Operation voltage : 5V.
  • Low Power Consumption.
  • 8-Step Dimming control by command.
  • Serial Interface for Clock, Data Input, Strobe Pins.
  • 24-pin, SOP Package.

📥 Download Datasheet

Datasheet Details

Part number LD1207
Manufacturer Integral Korea
File Size 289.92 KB
Description Led And Led Display Driver
Datasheet download datasheet LD1207 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LD1207 12/9 Segment Output Lines IK Semiconductor
LD1207L 12/9 Segment Output Lines IK Semiconductor
LD120 N-Channel 100V MOSFET VBsemi
LD120 4 1/2 Digit A/D Converter Set Siliconix
LD1205 Motorcycle steering indicator driver IC HUA AO

Other Datasheets by Integral Korea

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

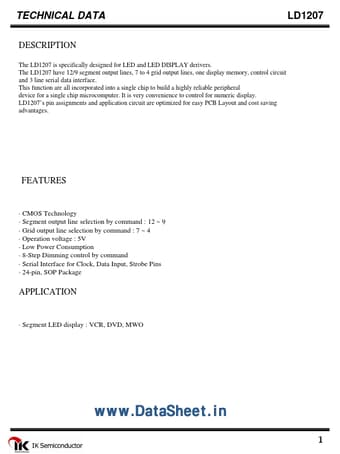

TECHNICAL DATA DESCRIPTION The LD1207 is specifically designed for LED and LED DISPLAY derivers. The LD1207 have 12/9 segment output lines, 7 to 4 grid output lines, one display memory, control circuit and 3 line serial data interface. This function are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. It is very convenience to control for numeric display. LD1207’s pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
Published: |
