IN1705 - Low power Micro Monitor Chip

IK Semiconductor

📥 Download Datasheet

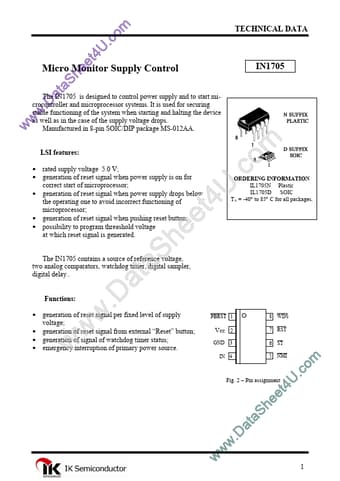

IN1705 Datasheet Preview — Preview of IN1705 PDF

Datasheet Details

Part number	IN1705
Manufacturer	IK Semiconductor
File Size	268.21 KB
Description	Low power Micro Monitor Chip
Datasheet	IN1705_IKSemiconductor.pdf

IN1705 Product details

Description

Pin 01 02 03 04 05 06 07 08 Symbol PBRST Vcc GND IN NMI ST RST WDS Description Pushbutton reset input Power supply Ground Input Non-maskable interrupt Watchdog timer strobe Active low reset Watchdog status Type Input Input Output Input Output Output 9 IN1705 N SUFFIX PLASTIC DIP (MS 001BA) A 8 5 B 1 4 Dimension, mm Symbol A B MIN 8.51 6.1 MAX 10.16 7.11 5.33 0.36 1.14 2.54 7.62 0° 2.92 7.62 0.2 0.38 10° 3.81 8.26 0.36 0.56 1.78 F L C D C -T- SEATING N G D 0.25 (0.010) M T K PLA

Features

rated supply voltage 5.0 V; generation of reset signal when power supply is on for correct start of microprocessor; generation of reset signal when power supply drops below the operating one to avoid incorrect functioning of microprocessor; generation of reset signal when pushing reset button; possibility to program threashold voltage at which reset signal is generated. U 4 t m o . c.
