IN1363 - CMOS LIS OF REAL TIME WATCH

Integral

📥 Download Datasheet

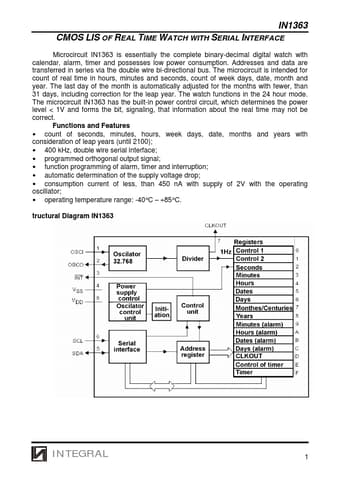

IN1363 Datasheet Preview — Preview of IN1363 PDF

Datasheet Details

Part number	IN1363
Manufacturer	Integral
File Size	208.88 KB
Description	CMOS LIS OF REAL TIME WATCH
Datasheet	IN1363-Integral.pdf

IN1363 Product details

Description

Measurement Unit Identification Norm Limit Permissible Limit Not less Not over Not less Not over Supply voltage, V Dissipated power, mWt Input voltage SCL, SDA, OSCI, V Output voltage CLKOUT,INT, V Direct input or output current via any pin, mА VDD Ptot VI VO IIO 1.0 0 0 - 5.5 0.5 6.5 - - 300 5.5 0.5 6.5 5.5 0.5 6.5 - 10 10 All voltages are listed relative to ground.Under influence of the limit mode serviceability of the microcircuits is not guara

Features

count of seconds, minutes, hours, week days, date, months and years with consideration of leap years (until 2100);.
400 kHz, double wire serial interface;.
programmed orthogonal output signal;.
function programming of alarm, timer and interruption;.
automatic determination of the supply voltage drop;.
consumption current of less, than 450 nA with supply of 2V with the operating oscillator;.
operating temperature range: -40С.
85С. tructural Diagram.
