MX0141VA0 1:4 High-Speed / Low-Speed Multiplexer Pair

IDT

MX0141VA0 Description

1:4 High-Speed / Low-Speed Multiplexer Pair MX0141VA0 Short-Form Datasheet .
Important: All parameters in this short-form datasheet are prior to device characterization and are currently subject to change.

MX0141VA0 Features

* 533MT/s
* 12-bit bus width, each port
* Bidirectional ports
* Tri-state for deselected ports
* Pin-to-pin output skew < 50ps
* Propagation delay < 100ps
* Insertion loss < 2dB Low-Speed MUX Features
* 50MT/s
* 4-bit bus width, each port
* Unidirectional port

MX0141VA0 Applications

* SATA drive memory expansion for both ONFI3 and TOGGLE2 Flash medium
* General purpose 1:4 multiplexing logic for compact, low-power product solutions Common High/Low MUX
* 1:4 mux (separate high-speed and low-speed groups)
* SSTL18 and SSTL12 signaling through mux
* Mux RON =

📥 Download Datasheet

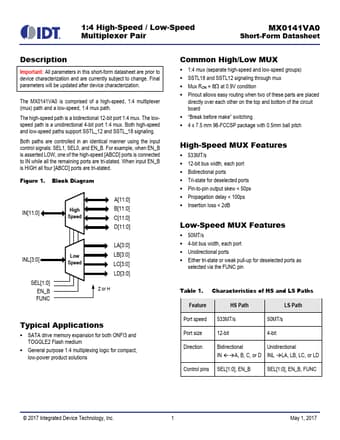

MX0141VA0 Datasheet Preview — Preview of MX0141VA0 PDF

Datasheet Details

Part number: MX0141VA0
Manufacturer: IDT
File Size: 199.88 KB
Datasheet: MX0141VA0-IDT.pdf
Description: 1:4 High-Speed / Low-Speed Multiplexer Pair
