CS7N60FA9HD - Silicon N-Channel Power MOSFET

Huajing Discrete Devices

The CS7N60FA9HD by Huajing Discrete Devices is a Silicon N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

CS7N60FA9HD Silicon N-Channel Power MOSFET by Huajing Discrete Devices - Datasheet Preview — Official preview page of the **CS7N60FA9HD** Silicon N-Channel Power MOSFET datasheet (Huajing Discrete Devices).

Datasheet Details

Part number	CS7N60FA9HD
Manufacturer	Huajing Discrete Devices
File Size	658.47 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS7N60FA9HD-HuajingDiscreteDevices.pdf

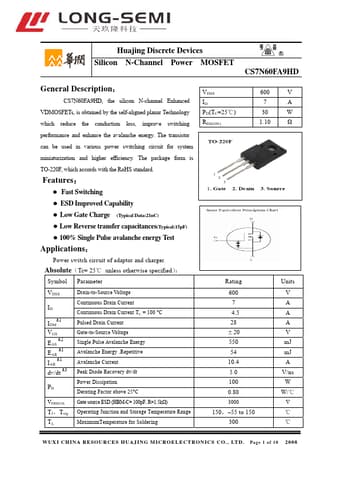

Additional preview pages of the CS7N60FA9HD datasheet.

CS7N60FA9HD Product details

Description

CS7N60FA9HD, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-220F, which accords with the RoHS standard.

Features

z Fast Switching z ESD Improved Capability z Low Gate Charge (Typical Data:21nC) z Low Reverse transfer capacitances(Typical:15pF) z 100% Single Pulse avalanche energy Test.
