HFD3403-2XX - for Industrial Bus Systems

Honeywell

📥 Download Datasheet

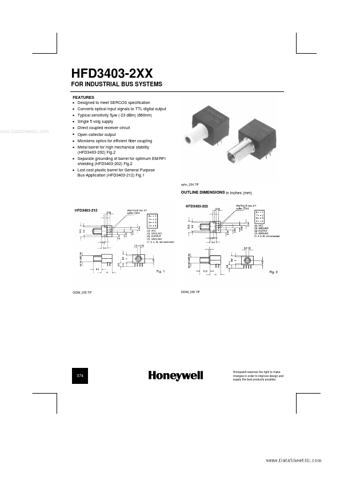

HFD3403-2XX Datasheet Preview — Preview of HFD3403-2XX PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HFD3403-2XX
Manufacturer	Honeywell
File Size	215.24 KB
Description	for Industrial Bus Systems
Datasheet	HFD3403-2XX_Honeywell.pdf

HFD3403-2XX Product details

Features

x Designed to meet SERCOS specification www. DataSheet4U. com x x x x x x x x x Converts optical input signals to TTL digital output Typical sensitivity 5µw (-23 dBm) (660nm) Single 5 volg supply Direct coupled receiver circuit Open collector output Microlens optics for efficient fiber coupling Metal barrel for high mechanical stability (HFD3403-202) Fig.2 Separate grounding of barrel for optimum EM/RFI shielding (HFD3403-202) Fig.2 Lost cost plastic barrel for General Purpose Bus-.
