BS814A-1, BS812A-1 - Touch Key

Holtek Semiconductor

📥 Download Datasheet

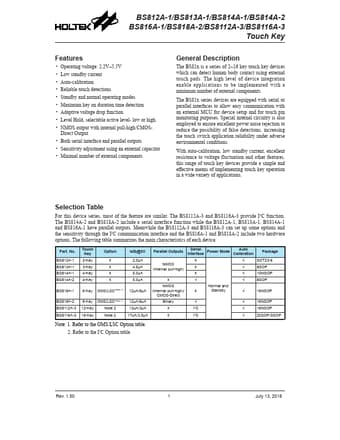

BS814A-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: BS814A-1, BS812A-1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BS814A-1, BS812A-1
Manufacturer	Holtek Semiconductor
File Size	583.48 KB
Description	Touch Key
Datasheet	BS812A-1-HoltekSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: BS814A-1, BS812A-1. Please refer to the document for exact specifications by model.

BS814A-1 Product details

Description

The BS81x is a series of 2~16 key touch key devices which can detect human body contact using external touch pads.

Features

Operating voltage: 2.2V~5.5V.
Low standby current.
Auto-calibration.
Reliable touch detections.
Standby and normal operating modes.
Maximum key on duration time detection.
Adaptive voltage drop function.
Level Hold, selectable active level- low or high.
NMOS output with internal pull-high/CMOS- Direct Output.
Both serial interface and parallel outputs.
Sensitivity adjustment using an ex.
