BS813A-1 - Touch Key

Download the BS813A-1 datasheet PDF (BS812A-1 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for touch key.

Description

The BS81x is a series of 2~16 key touch key devices which can detect human body contact using external touch pads.

The high level of device integration enable applications to be implemented with a minimum number of external components.

Features

  • Operating voltage: 2.2V~5.5V.
  • Low standby current.
  • Auto-calibration.
  • Reliable touch detections.
  • Standby and normal operating modes.
  • Maximum key on duration time detection.
  • Adaptive voltage drop function.
  • Level Hold, selectable active level- low or high.
  • NMOS output with internal pull-high/CMOS- Direct Output.
  • Both serial interface and parallel outputs.
  • Sensitivity adjustment using an ex.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BS812A-1-HoltekSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • BS810 - X-Band TR Tube (EEV)
  • BS814 - X-Band TR Limiter (EEV)
  • BS816 - X-Band TR Limiter (EEV)
  • BS817 - P-CHANNEL ENHANCEMENT MODE DMOS TRANSISTOR (Diodes Incorporated)
  • BS818 - X-Band TR Limiter (EEV)
  • BS807 - N-CHANNEL ENHANCEMENT MODE DMOS TRANSISTOR (Diodes Incorporated)
  • BS809 - DMOS Transistors (General Semiconductor)
  • BS826 - X-Band TR Limiter (EEV)
  • BS828 - DMOS Transistors (General Semiconductor)
  • BS829 - DMOS Transistors (General Semiconductor)
Other Datasheets by Holtek Semiconductor

Full PDF Text Transcription

Click to expand full text

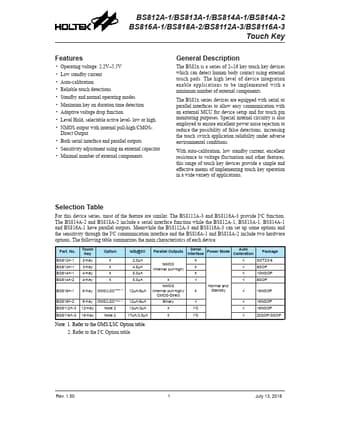

BS812A-1/BS813A-1/BS814A-1/BS814A-2 BS816A-1/BS818A-2/BS8112A-3/BS8116A-3 Touch Key Features • Operating voltage: 2.2V~5.5V • Low standby current • Auto-calibration • Reliable touch detections • Standby and normal operating modes • Maximum key on duration time detection • Adaptive voltage drop function • Level Hold, selectable active level- low or high • NMOS output with internal pull-high/CMOS- Direct Output • Both serial interface and parallel outputs • Sensitivity adjustment using an external capacitor • Minimal number of external components General Description The BS81x is a series of 2~16 key touch key devices which can detect human body contact using external touch pads.
