HMC-SDD112 - GaAs PIN MMIC SPDT SWITCH 55 - 86 GHz

Name: HMC-SDD112
SKU: HMC-SDD112-633637

Hittite Microwave Corporation

📥 Download Datasheet

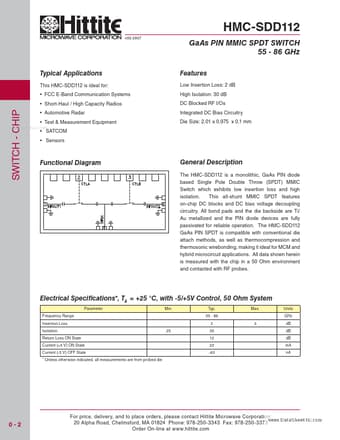

HMC-SDD112 Datasheet Preview — Preview of HMC-SDD112 PDF

Datasheet Details

Part number	HMC-SDD112
Manufacturer	Hittite Microwave Corporation
File Size	122.56 KB
Description	GaAs PIN MMIC SPDT SWITCH 55 - 86 GHz
Datasheet	HMC-SDD112_HittiteMicrowaveCorporation.pdf

HMC-SDD112 Product details

Description

The HMC-SDD112 is a monolithic, GaAs PIN diode based Single Pole Double Throw (SPDT) MMIC Switch which exhibits low insertion loss and high isolation.

Features

Low Insertion Loss: 2 dB High Isolation: 30 dB DC Blocked RF I/Os Integrated DC Bias Circuitry Die Size: 2.01 x 0.975 x 0.1 mm Typical.
