HMC-ALH313 - GaAs HEMT MMIC LOW-NOISE AMPLIFIER

Description

The HMC-ALH313 is a three stage GaAs MMIC HEMT Low Noise Amplifier die which operates between 27 and 33 GHz.

The amplifier provides 20 dB of gain, a 3 dB noise figure and +12 dBm of output power at 1 dB gain compression while requiring only 52 mA from a +2.5V supply voltage.

Features

  • Noise Figure: 3 dB Gain: 20 dB P1dB Output Power: +12 dBm Supply Voltage: +2.5V @ 52 mA Die Size: 1.80 x 0.73 x 0.1 mm General.

📥 Download Datasheet

📁 Similar Datasheet

  • HMC-ALH313 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH369 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH376 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH382 - GaAs HEMT LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH102 - GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH244 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH444 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH445 - GaAs HEMT MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
  • HMC-ALH508 - Low Noise Amplifier Chip (Hittite Microwave Corporation)
  • HMC-ALH509 - GaAs HEMT LOW NOISE AMPLIFIER (Hittite Microwave Corporation)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text

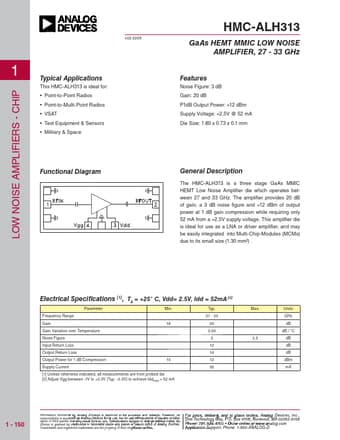

LOW NOISE AMPLIFIERS - CHIP v02.0209 1 Typical Applications This HMC-ALH313 is ideal for: • Point-to-Point Radios • Point-to-Multi-Point Radios • VSAT • Test Equipment & Sensors • Military & Space Functional Diagram HMC-ALH313 GaAs HEMT MMIC LOW NOISE AMPLIFIER, 27 - 33 GHz Features Noise Figure: 3 dB Gain: 20 dB P1dB Output Power: +12 dBm Supply Voltage: +2.5V @ 52 mA Die Size: 1.80 x 0.73 x 0.1 mm General Description The HMC-ALH313 is a three stage GaAs MMIC HEMT Low Noise Amplifier die which operates between 27 and 33 GHz. The amplifier provides 20 dB of gain, a 3 dB noise figure and +12 dBm of output power at 1 dB gain compression while requiring only 52 mA from a +2.5V supply voltage.
