LM021, LCD

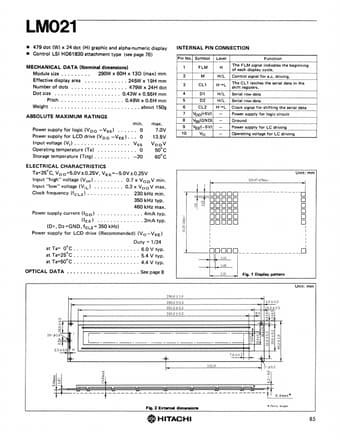

LM021 479 dot (W) x 24 dot (H) graphic and alpha-numeric display Control LSI H061830 attachment type (see page 76) MECHANICAL DATA (Nominal dimensions) Module size .

.

.

.

.

.

.

.

.

290W x 60H x 130 (max) mm Effective display area 245W x 19H mm Number of dots .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

479W x 24H dot Dot size .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

0.43W x 0.55H mm Pitch .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

0.48W x 0.6H mm Weight .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.
