HM62W16255HI - 4M High Speed SRAM (256-kword x 16-bit)

Hitachi Semiconductor

📥 Download Datasheet

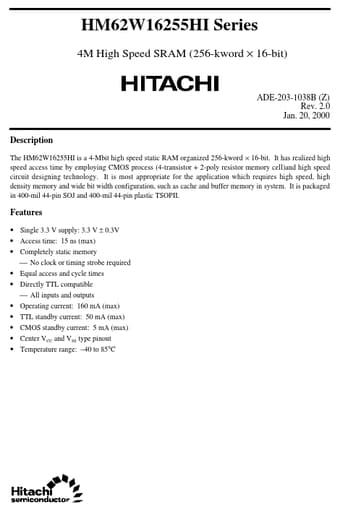

HM62W16255HI Datasheet Preview — Preview of HM62W16255HI PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HM62W16255HI
Manufacturer	Hitachi Semiconductor
File Size	92.45 KB
Description	4M High Speed SRAM (256-kword x 16-bit)
Datasheet	HM62W16255HI_HitachiSemiconductor.pdf

HM62W16255HI Product details

Description

The HM62W16255HI is a 4-Mbit high speed static RAM organized 256-kword × 16-bit.

Features

Single 3.3 V supply: 3.3 V ± 0.3V.
Access time: 15 ns (max).
Completely static memory  No clock or timing strobe required.
Equal access and cycle times.
Directly TTL compatible  All inputs and outputs.
Operating current: 160 mA (max).
TTL standby current: 50 mA (max).
CMOS standby current: 5 mA (max).
Center VCC and VSS type pinout.
Temperature range:.
40 to 85°C HM62W16255HI Series Ordering Inf.
