HM5164805F, HM5165805F - (HM5164805F / HM5165805F) 64 MEDO DRAM (8-Mword X 8-bit) 8 k Refresh/4 k Refresh

Hitachi Semiconductor

Datasheet Details

Part number	HM5164805F, HM5165805F
Manufacturer	Hitachi Semiconductor
File Size	490.79 KB
Description	(HM5164805F / HM5165805F) 64 MEDO DRAM (8-Mword X 8-bit) 8 k Refresh/4 k Refresh
Datasheet	HM5165805F_HitachiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HM5164805F, HM5165805F. Please refer to the document for exact specifications by model.

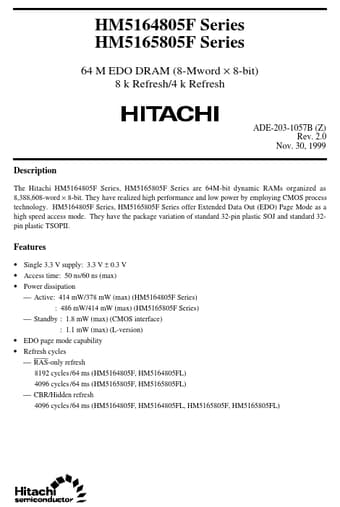

The Hitachi HM5164805F Series, HM5165805F Series are 64M-bit dynamic RAMs organized as 8,388,608-word × 8-bit.

Single 3.3 V supply: 3.3 V ± 0.3 V.
Access time: 50 ns/60 ns (max).
Power dissipation  Active: 414 mW/378 mW (max) (HM5164805F Series) : 486 mW/414 mW (max) (HM5165805F Series)  Standby : 1.8 mW (max) (CMOS interface) : 1.1 mW (max) (L-version).
EDO page mode capability.
Refresh cycles  RAS-only refresh 8192 cycles /64 ms (HM5164805F, HM5164805FL) 4096 cycles /64 ms (HM5165805F, HM5165805FL)  CBR/Hidden refresh 4096 cycles /64 ms (HM5164805F, HM5.
