HM5164165F, HM5165165F - (HM5164165F / HM5165165F) 64M EDO DRAM (4-Mword x 16-bit) 8k refresh/4k refresh

Hitachi Semiconductor

Datasheet Details

Part number	HM5164165F, HM5165165F
Manufacturer	Hitachi Semiconductor
File Size	510.77 KB
Description	(HM5164165F / HM5165165F) 64M EDO DRAM (4-Mword x 16-bit) 8k refresh/4k refresh
Datasheet	HM5165165F_HitachiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HM5164165F, HM5165165F. Please refer to the document for exact specifications by model.

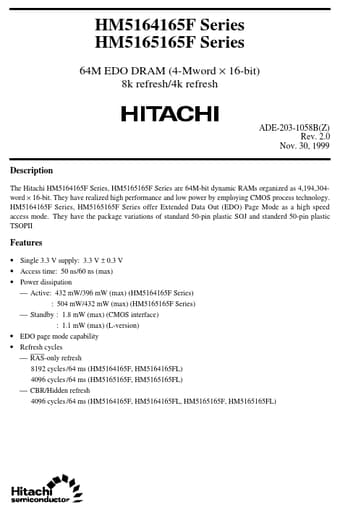

The Hitachi HM5164165F Series, HM5165165F Series are 64M-bit dynamic RAMs organized as 4,194,304word × 16-bit.

Single 3.3 V supply: 3.3 V ± 0.3 V.
Access time: 50 ns/60 ns (max).
Power dissipation  Active: 432 mW/396 mW (max) (HM5164165F Series) : 504 mW/432 mW (max) (HM5165165F Series)  Standby : 1.8 mW (max) (CMOS interface) : 1.1 mW (max) (L-version).
EDO page mode capability.
Refresh cycles  RAS-only refresh 8192 cycles /64 ms (HM5164165F, HM5164165FL) 4096 cycles /64 ms (HM5165165F, HM5165165FL)  CBR/Hidden refresh 4096 cycles /64 ms (HM5164165F, HM5.
