HD74HCT138 - 3-to-8-line Decoder/Demultiplexer

HD74HCT138 Description

HD74HCT138 3-to-8-line Decoder/Demultiplexer .
The HD74HCT138 has 3 binary select inputs (A, B, and C).

HD74HCT138 Features

* LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility High Speed Operation: tpd (A, B, C to Y) = 18.5 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 4.5 to 5.5 V Low Inp

📥 Download Datasheet

Preview of HD74HCT138 PDF

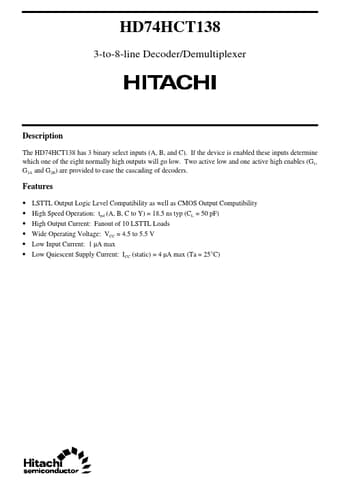

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74HCT138
Manufacturer
Hitachi Semiconductor
File Size
47.91 KB
Datasheet
HD74HCT138_HitachiSemiconductor.pdf
Description
3-to-8-line Decoder/Demultiplexer
