HD74HCT125 - Quad. Bus Buffer Gates (with 3-state outputs)

HD74HCT125 Description

HD74HCT125/HD74HCT126 Quad.Bus Buffer Gates (with 3-state outputs) .
The HD74HCT125, HD74HCT126 require the 3-state control input C to be taken high to put the output into the high impedance condition, whereas the HD74H.

HD74HCT125 Features

* LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility High Speed Operation: tpd (A to Y) = 12 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 4.5 to 5.5 V Low Input Curre

📥 Download Datasheet

Preview of HD74HCT125 PDF

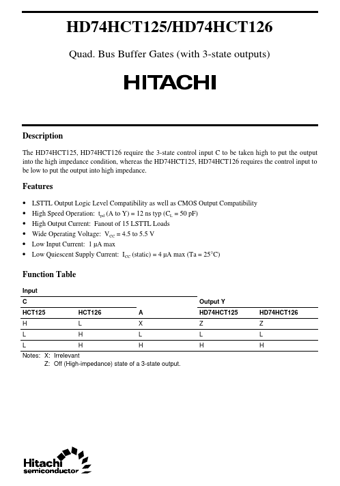

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74HCT125
Manufacturer
Hitachi Semiconductor
File Size
47.83 KB
Datasheet
HD74HCT125_HitachiSemiconductor.pdf
Description
Quad. Bus Buffer Gates (with 3-state outputs)
