2SK3147L N-Channel MOSFET

2SK3147L Description

2SK3147(L),2SK3147(S) Silicon N Channel MOS FET High Speed Power Switching ADE-208-731 (Z) 1st.Edition February 1999 .

2SK3147L Features

* Low on-resistance R DS = 0.1 Ω typ.
* High speed switching
* 4 V gate drive device can be driven from 5 V source Outline DPAK
* 2 4 4 D 2 1 2 G 1 3 3 S 1 2 3 1. Gate 2. Drain 3. Source 4. Drain 2SK3147(L),2SK3147(S) Absolute Maximum Ratings (Ta = 25°C) Item D

📥 Download Datasheet

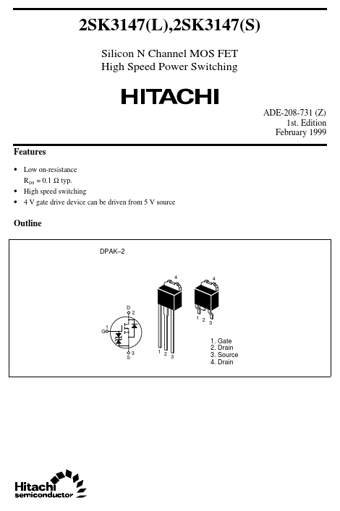

Preview of 2SK3147L PDF
datasheet Preview Page 2 datasheet Preview Page 3
