2SK3142 N-Channel MOSFET

2SK3142 Description

2SK3142 Silicon N Channel MOS FET High Speed Power Switching ADE-208-681A (Z) 2nd.Edition February 1999 .

2SK3142 Features

* Low on-resistance R DS(on) = 4 mΩ typ.
* Low drive current
* 4 V gate drive device can be driven from 5 V source Outline TO
* 220CFM D G 1 2 3 1. Gate 2. Drain 3. Source S 2SK3142 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source

📥 Download Datasheet

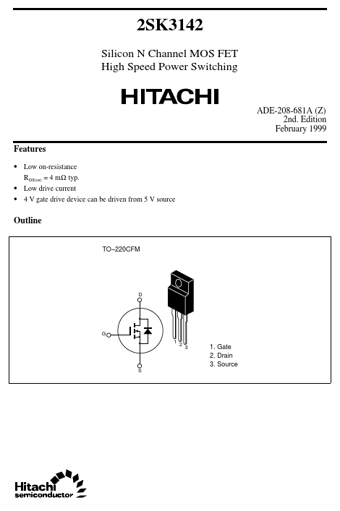

Preview of 2SK3142 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3142
Manufacturer
Hitachi Semiconductor
File Size
50.64 KB
Datasheet
2SK3142_HitachiSemiconductor.pdf
Description
N-Channel MOSFET
