2SK3076 - N-Channel MOSFET

Hitachi Semiconductor

Datasheet Details

Part number	2SK3076
Manufacturer	Hitachi Semiconductor
File Size	51.90 KB
Description	N-Channel MOSFET
Datasheet	2SK3076_HitachiSemiconductor.pdf

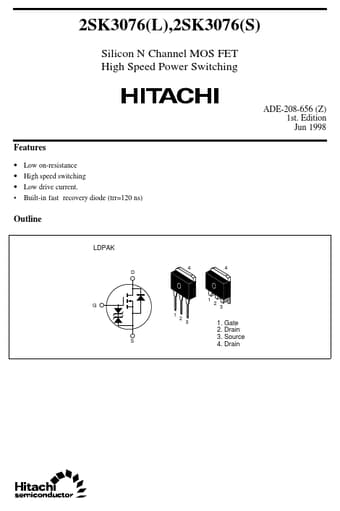

Low on-resistance High speed switching Low drive current. Built-in fast recovery diode (trr=120 ns) Outline LDPAK 4 4 D 1 G 1 2 3 2 3 S 1. Gate 2. Drain 3. Source 4. Drain 2SK3076(L),2SK3076(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Symbol VDSS VGSS ID I D(pulse) Note1 Ratings 500 ±30 7 28 7 Unit V V A A A W °C °C Body-drain diode reverse drain current I DR Channe.
