2SK2075 - Silicon N-Channel MOSFET

Hitachi Semiconductor

Datasheet Details

Part number	2SK2075
Manufacturer	Hitachi Semiconductor
File Size	47.63 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2075_HitachiSemiconductor.pdf

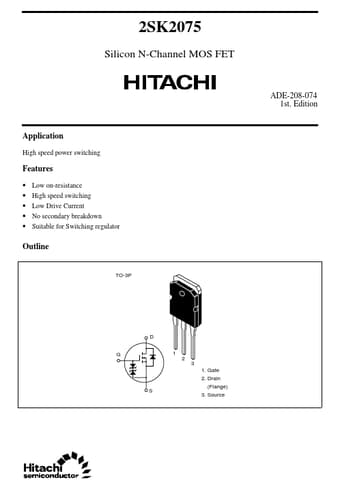

Low on-resistance High speed switching Low Drive Current No secondary breakdown Suitable for Switching regulator Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK2075 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs, duty cycle ≤ 1 %.
