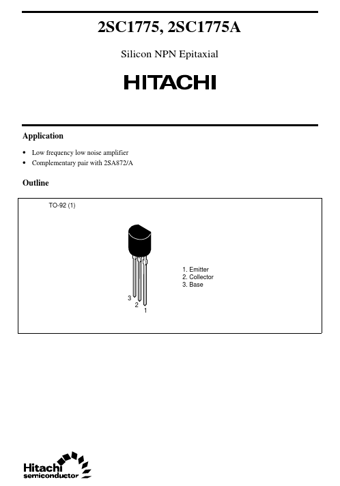

2SC1775, 2SC1775A
Silicon NPN Epitaxial
Application
• Low frequency low noise amplifier • Complementary pair with 2SA872/A
Outline
TO-92 (1)
1. Emitter 2. Collector 3. Base 3 2 1
2SC1775, 2SC1775A
Absolute Maximum Ratings (Ta = 25°C)
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SC1775 90 90 5 50 300 150 –55 to +150 2SC1775A 120 120 5 50 300 150 –50 to +150 Unit V V V mA mW °C °C
Electrical Characteristics (Ta = 25°C)
2SC1775 Item Collector to emitter breakdown voltage Collector cutoff current Symbol Min V(BR)CEO I CBO
1
2SC1775A Max — 0.5 — Min 120 — — Typ — — — — — — — 200 1.6 — Max — — 0.5 1200 — 0.75 0.5 — — 5.
