MCR60A-98D-2.54DSB - ISA Bus (AT bus)

Name: MCR60A-98D-2.54DSB
SKU: MCR60A-98D-2.54DSB-440262

Hirose Electric

The MCR60A-98D-2.54DSB by Hirose Electric is a ISA Bus (AT bus). Below is the official datasheet preview.

Datasheet Details

Part number	MCR60A-98D-2.54DSB
Manufacturer	Hirose Electric
File Size	216.50 KB
Description	ISA Bus (AT bus)
Datasheet	MCR60A-98D-2.54DSB_HiroseElectric.pdf

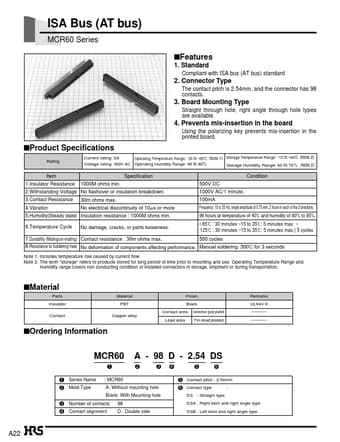

Additional preview pages of the MCR60A-98D-2.54DSB datasheet.

1. Standard Compliant with ISA bus (AT bus) standard 2. Connector Type The contact pitch is 2.54mm, and the connector has 98 contacts. 3. Board Mounting Type Straight through hole, right angle through hole types are available. 4. Prevents mis-insertion in the board Using the polarizing key prevents mis-insertion in the printed board. sProduct Specifications Rating Current rating: 3A Operating Temperature Range: -30 to +85ç (Note 1) Storage Temperature Range: -10 to +60ç (Note 2) Voltage rati.
