MCR60-98D-2.54DS - ISA Bus (AT bus)

Hirose Electric

📥 Download Datasheet

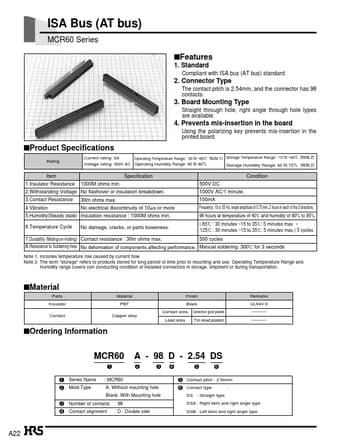

MCR60-98D-2.54DS Datasheet Preview — Preview of MCR60-98D-2.54DS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MCR60-98D-2.54DS
Manufacturer	Hirose Electric
File Size	216.50 KB
Description	ISA Bus (AT bus)
Datasheet	MCR60-98D-2.54DS_HiroseElectric.pdf

MCR60-98D-2.54DS Product details

Features

1. Standard Compliant with ISA bus (AT bus) standard 2. Connector Type The contact pitch is 2.54mm, and the connector has 98 contacts. 3. Board Mounting Type Straight through hole, right angle through hole types are available. 4. Prevents mis-insertion in the board Using the polarizing key prevents mis-insertion in the printed board. sProduct Specifications Rating Current rating: 3A Operating Temperature Range: -30 to +85ç (Note 1) Storage Temperature Range: -10 to +60ç (Note 2) Voltage rati.
