SFM3011T - 110A 30V N-CHANNEL POWER MOSFET

The SFM3011T by HiSemicon is a 110A 30V N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

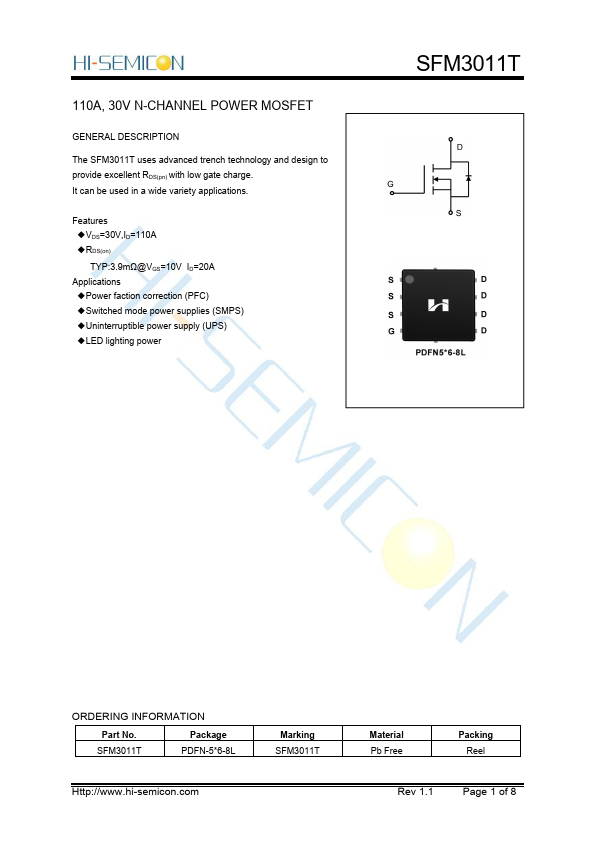

Official preview page of the SFM3011T 110A 30V N-CHANNEL POWER MOSFET datasheet (HiSemicon).

Datasheet Details

Part number SFM3011T
Manufacturer HiSemicon
File Size 650.91 KB
Description 110A 30V N-CHANNEL POWER MOSFET
Datasheet download datasheet SFM3011T-HiSemicon.pdf

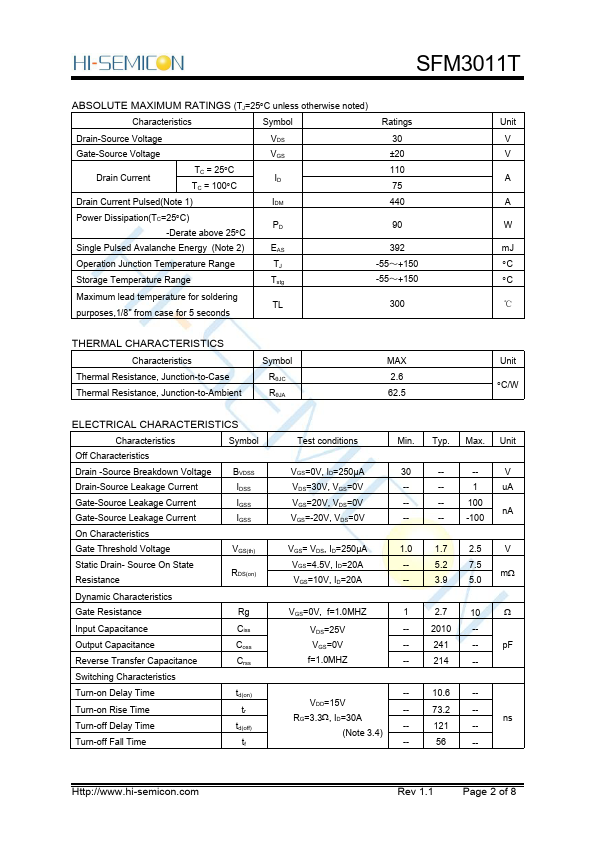

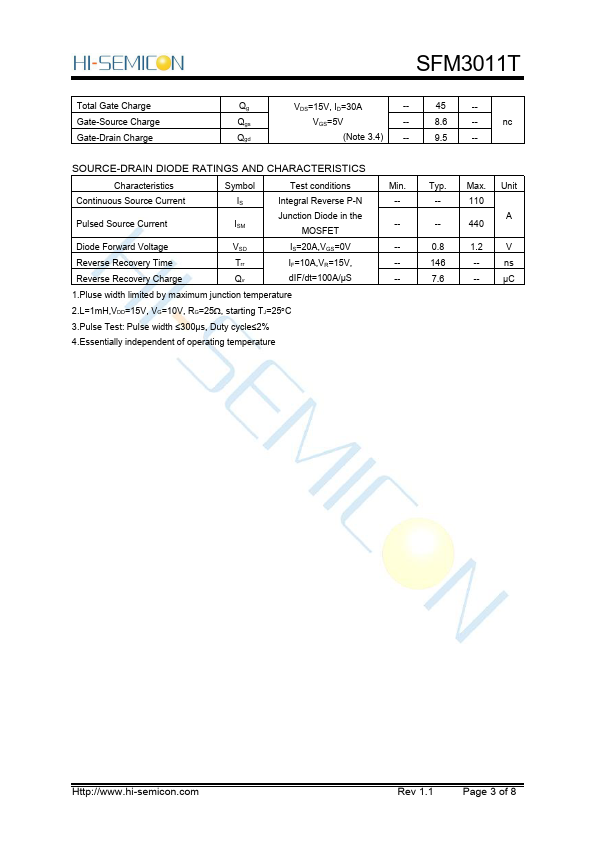

Additional preview pages of the SFM3011T datasheet.

SFM3011T Product details

Description

The SFM3011T uses advanced trench technology and design to provide excellent RDS(pn) with low gate charge.

Features
