SFM3010PT - 30V 100A P-CHANNEL POWER MOSFET

The SFM3010PT by HiSemicon is a 30V 100A P-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

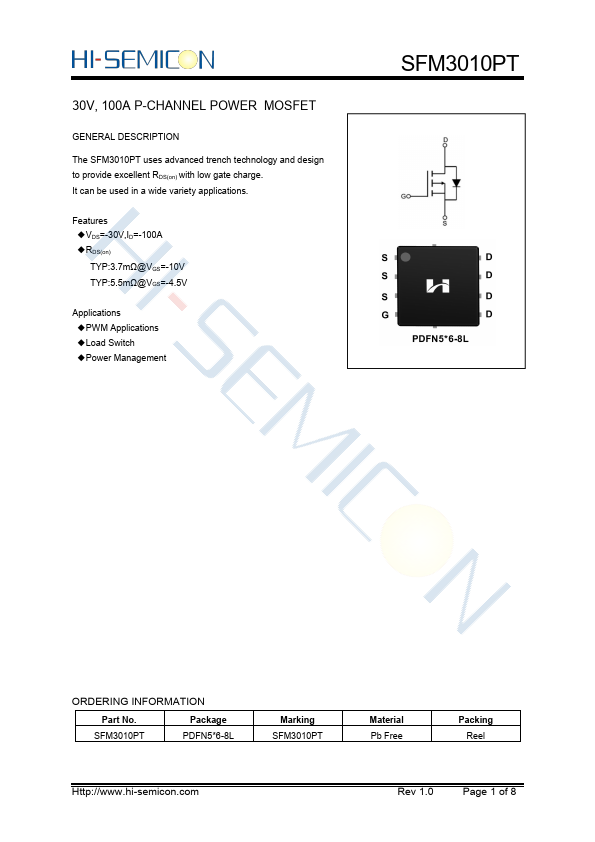

Official preview page of the SFM3010PT 30V 100A P-CHANNEL POWER MOSFET datasheet (HiSemicon).

Datasheet Details

Part number SFM3010PT
Manufacturer HiSemicon
File Size 1.32 MB
Description 30V 100A P-CHANNEL POWER MOSFET
Datasheet download datasheet SFM3010PT-HiSemicon.pdf

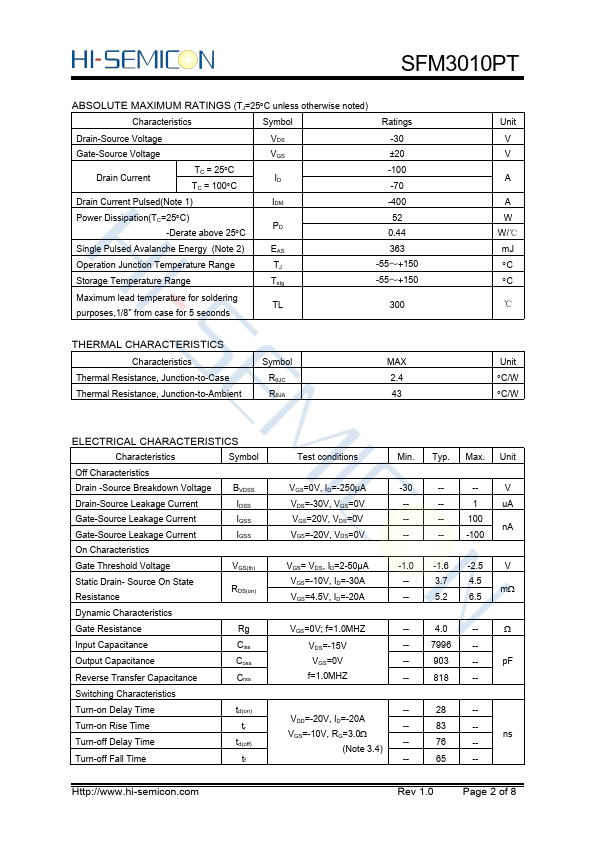

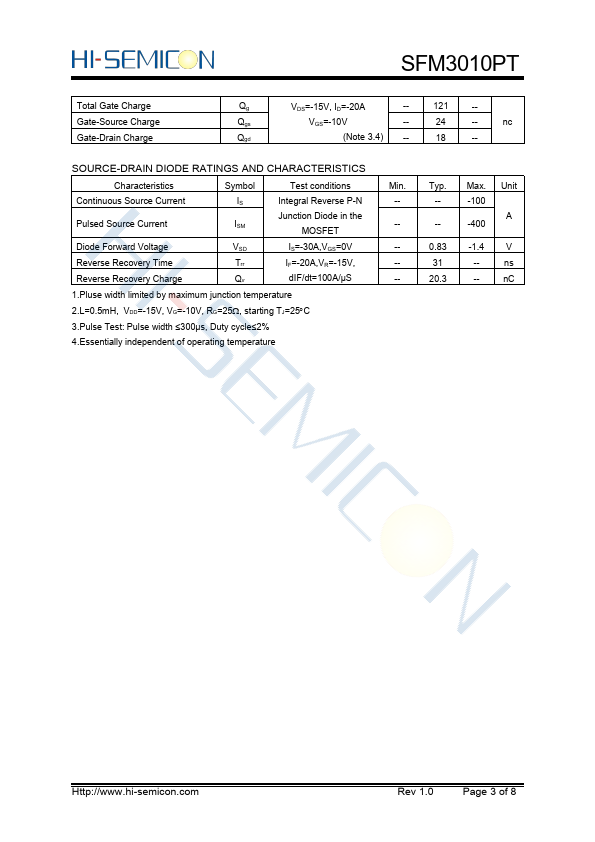

Additional preview pages of the SFM3010PT datasheet.

SFM3010PT Product details

Description

The SFM3010PT uses advanced trench technology and design to provide excellent RDS(on) with low gate charge.

Features
