HJ649A, HJ649A_Hi - PNP EPITAXIAL PLANAR TRANSISTOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HJ649A, HJ649A_Hi. Please refer to the document for exact specifications by model.

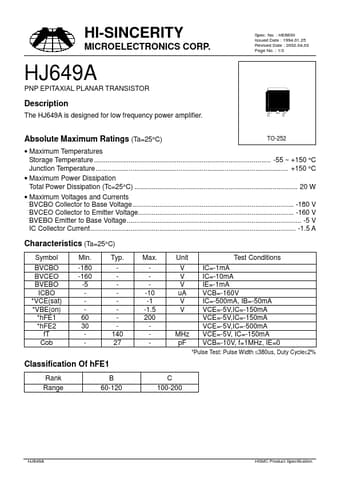

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number HJ649A, HJ649A_Hi
Manufacturer Hi-Sincerity Mocroelectronics
File Size 27.71 KB
Description PNP EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet HJ649A_Hi-SincerityMocroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: HJ649A, HJ649A_Hi.
Please refer to the document for exact specifications by model.

HJ649A Product details

Description

The HJ649A is designed for low frequency power amplifier. Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum Power Dissipation Total Power Dissipation (Tc=25°C) 20 W Maximum Voltages and Currents BVCBO Collector to Base Voltage -180 V BVCEO Collector to Emitter Voltage -160 V BVE
