HP5082-766x, HP5082-7740_Hewlett 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display

Hewlett-Packard

Description

7.6 mm (0.3 inch)/10.9 mm (0.43 inch) Seven Segment Displays Technical Data 5082-761X Series 5082-762X Series 5082-765X Series 5082-766X Series 5082-.
The 7.

📥 Download Datasheet

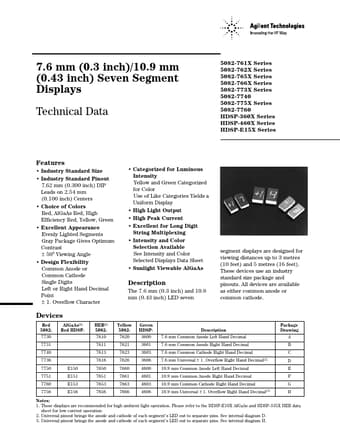

HP5082-766x Datasheet Preview — This datasheet PDF includes multiple part numbers: HP5082-766x, HP5082-7740_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HP5082-766x, HP5082-7740_Hewlett
Manufacturer: Hewlett-Packard
File Size: 311.98 KB
Datasheet: HP5082-7740_Hewlett-Packard.pdf
Description: 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display
Note: This datasheet PDF includes multiple part numbers: HP5082-766x, HP5082-7740_Hewlett.
Please refer to the document for exact specifications by model.

Features

* Industry Standard Size
* Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers
* Choice of Colors Red, AlGaAs Red, High Efficiency Red, Yellow, Green
* Excellent Appearance Evenly Lighted Segments Gray Package Gives Optimum Contrast

Applications

* Pin for pin equivalent displays are also available in a low current or high light ambient design. The low current displays are ideal for portable applications. The high light ambient displays are ideal for high light ambients or long string lengths. For additional information see the Low Current
