SDT100-16, SDT100 THREE PHASE RECTIFIER BRIDGE

SDT100-16 Description

THREE PHASE RECTIFIER BRIDGE .

SDT100-16 Features

* Three phase bridge and a Thyristor
* Blocking voltage: 800 to 1600V

SDT100-16 Applications

* Three phase rectifiers for power supplies
* Inverter for AC or DC motor control
* Input rectifiers for variable frequency drives MECHANICAL DATA
* Mt to terminals (M5): 3±15% N
* m
* Ms to heatsink (M5): 3±15% N
* m
* Module Weight: 210g (Approximately) SDT100 Series REVERSE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDT100-16, SDT100. Please refer to the document for exact specifications by model.

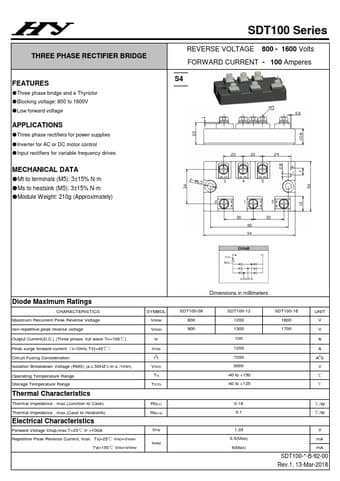

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDT100-16, SDT100
Manufacturer
HY
File Size
792.47 KB
Datasheet
SDT100-HY.pdf
Description
THREE PHASE RECTIFIER BRIDGE
Note
This datasheet PDF includes multiple part numbers: SDT100-16, SDT100.
Please refer to the document for exact specifications by model.
