SDT10100CTFP, SDT10100CT 10A TRENCH SCHOTTKY RECTIFIER

SDT10100CTFP Description

SDT10100CT *SDT10100CTFP Green 10A TRENCH SCHOTTKY RECTIFIER Product Summary (Per Leg) VRRM (V) 100 IO (A) 5 VF Max (V) @ +25°C 0.76 IR Ma.
and Applications Mechanical Data The SDT10100CT, SDT10100CTFP provides very low VF and extremely excellent reverse leakage stability at high tempera.

SDT10100CTFP Features

* Low Forward Voltage Drop
* Excellent High Temperature Stability
* Soft, Fast Switching Capability
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDT10100CTFP, SDT10100CT. Please refer to the document for exact specifications by model.

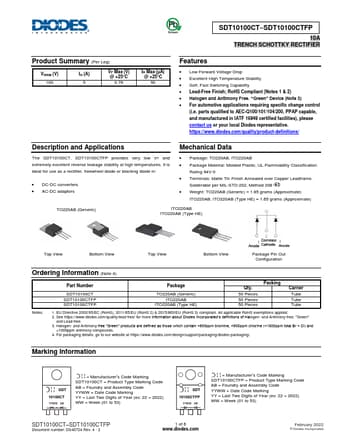

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDT10100CTFP, SDT10100CT
Manufacturer
DIODES ↗
File Size
768.58 KB
Datasheet
SDT10100CT-DIODES.pdf
Description
10A TRENCH SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SDT10100CTFP, SDT10100CT.
Please refer to the document for exact specifications by model.
