Datasheet Details
| Part number | HYG090N06LS1C2 |
|---|---|
| Manufacturer | HUAYI |
| File Size | 763.51 KB |
| Description | Single N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG090N06LS1C2-HUAYI.pdf
|
| Part number | HYG090N06LS1C2 |
|---|---|
| Manufacturer | HUAYI |
| File Size | 763.51 KB |
| Description | Single N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG090N06LS1C2-HUAYI.pdf
|

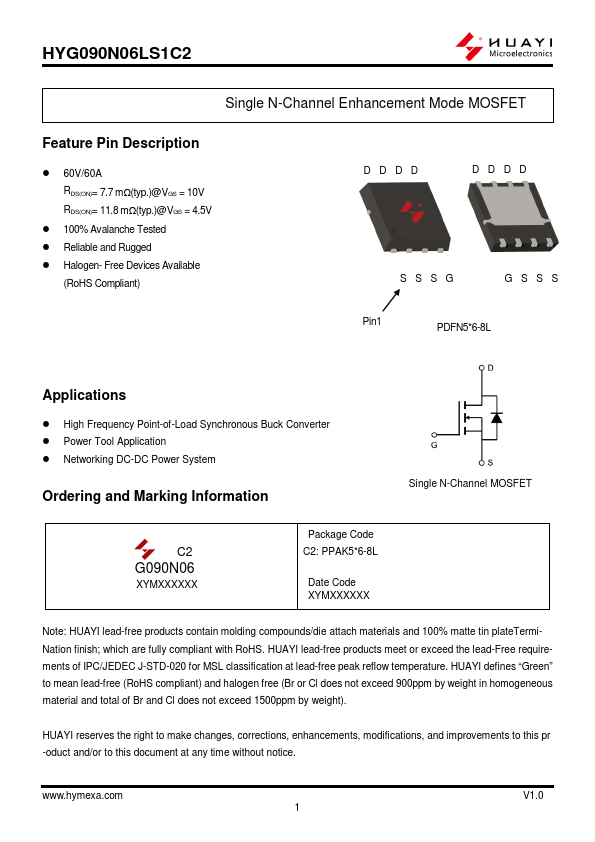

60V/60A RDS(ON)= 7.7 mΩ(typ.)@VGS = 10V RDS(ON)= 11.8 mΩ(typ.)@VGS = 4.5V 100% Avalanche Tested Reliable and Rugged Halogen- Free Devices Available (RoHS Compliant) DDDD DDDD SSSG GSSS Pin1 PDFN5 6-8L Applications High Frequency Point-of-Load Synchronous Buck Converter Power Tool Application Networking DC-DC Power System Ordering and Marking Information Single N-Channel MOSFET C2 G090N06 XYMXXXXXX Package Code C2: PPAK5 6-8L Date Code X
