HYG020N06LS1B, HYG020N06LS1P N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG020N06LS1P/B Microelectronics N-Channel Enhancement Mode MOSFET .
TO-220FB-3L TO-263-2L Applications. DC-DC Switched-mode Power Supplies. Battery Management System. Inverter. Electroplate Power.

📥 Download Datasheet

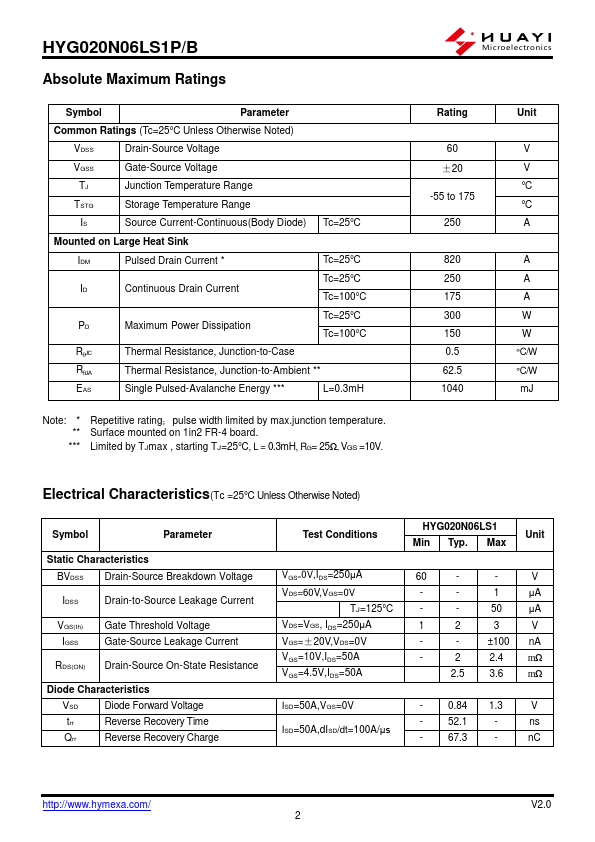

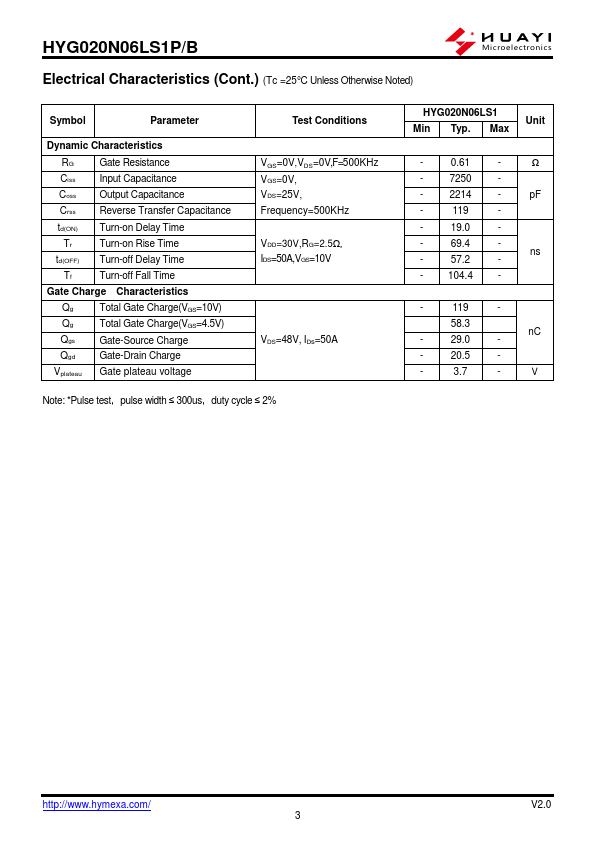

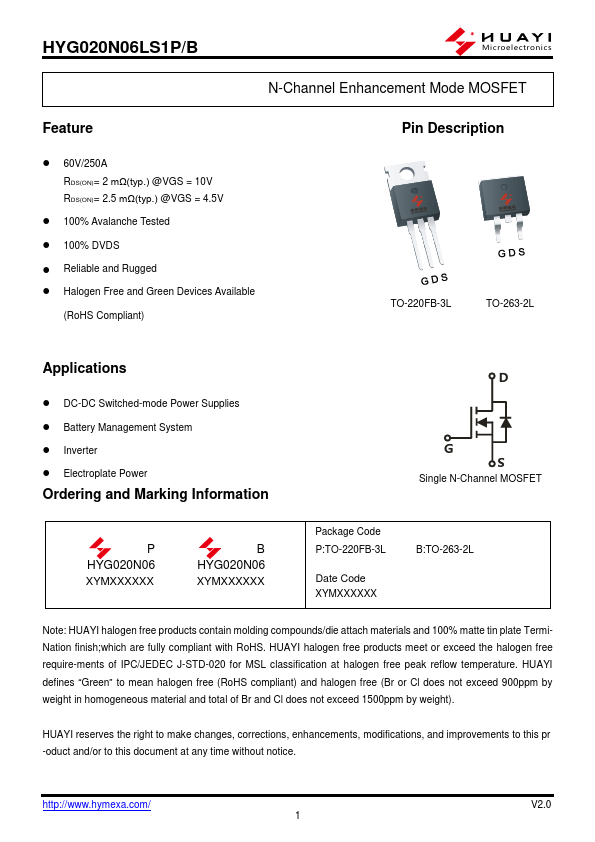

HYG020N06LS1B Datasheet Preview — This datasheet PDF includes multiple part numbers: HYG020N06LS1B, HYG020N06LS1P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HYG020N06LS1B, HYG020N06LS1P
Manufacturer: HUAYI
File Size: 587.85 KB
Datasheet: HYG020N06LS1P-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET
Note: This datasheet PDF includes multiple part numbers: HYG020N06LS1B, HYG020N06LS1P.
Please refer to the document for exact specifications by model.

Applications

* DC-DC Switched-mode Power Supplies
* Battery Management System
* Inverter
* Electroplate Power Ordering and Marking Information D G S Single N-Channel MOSFET P HYG020N06 XYMXXXXXX B HYG020N06 XYMXXXXXX Package Code P:TO-220FB-3L Date Code XYMXXXXXX B:TO-263-2L Note: HUAYI hal
