HY3503C2 - N-Channel Enhancement Mode MOSFET

HY3503C2 Description

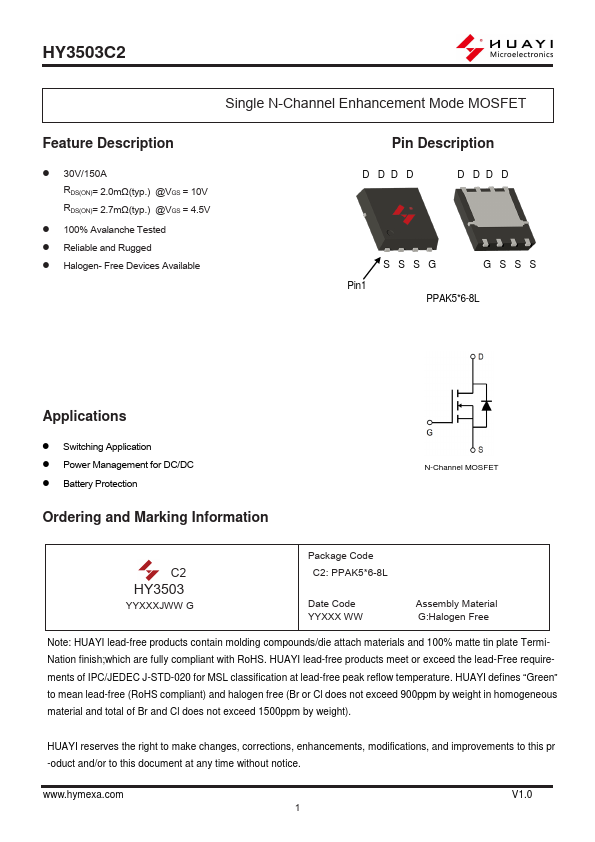

HY3503C2 Single N-Channel Enhancement Mode MOSFET .
z 30V/150A RDS(ON)= 2.

HY3503C2 Applications

* Switching Application
* Power Management for DC/DC
* Battery Protection Ordering and Marking Information N-Channel MOSFET C2 HY3503 YYXXXJWW G Package Code C2: PPAK5
* 6-8L Date Code YYXXX WW Assembly Material G:Halogen Free Note: HUAYI lead-free products contain molding compoun

📥 Download Datasheet

Preview of HY3503C2 PDF

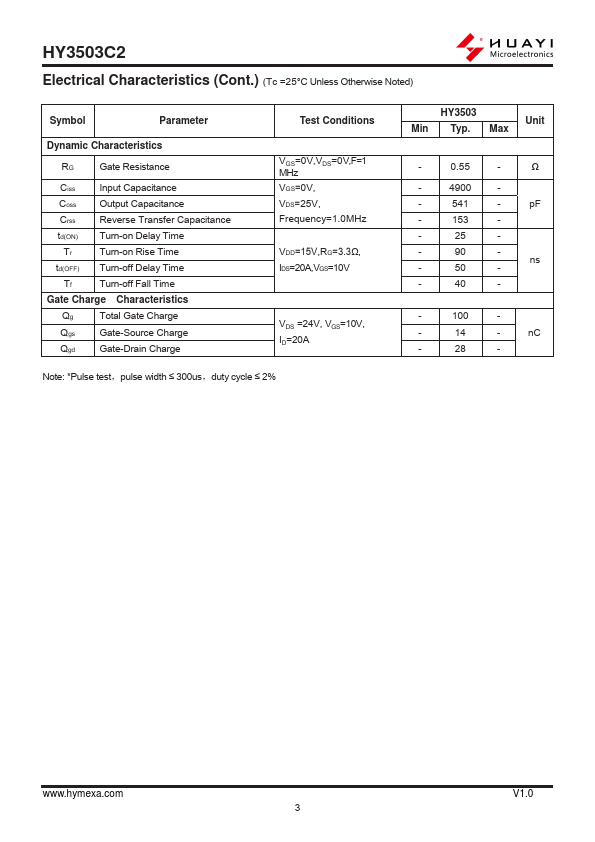

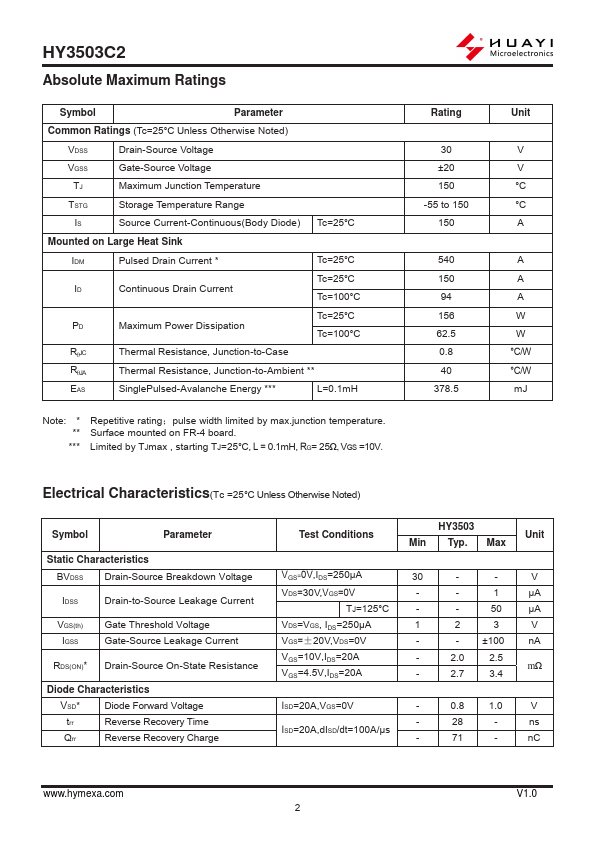

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY3503C2
Manufacturer
HUAYI
File Size
623.28 KB
Datasheet
HY3503C2-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET
