HY3210NA2P - N-Channel Enhancement Mode MOSFET

HY3210NA2P Description

HY3210NA2P/B .
TO-220FB-3L TO-263-2L Ordering and Marking Information P HY3210 XYMXXXXXX B HY3210 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L Date.

HY3210NA2P Applications

* Power Switching application
* Uninterruptible Power Supply

📥 Download Datasheet

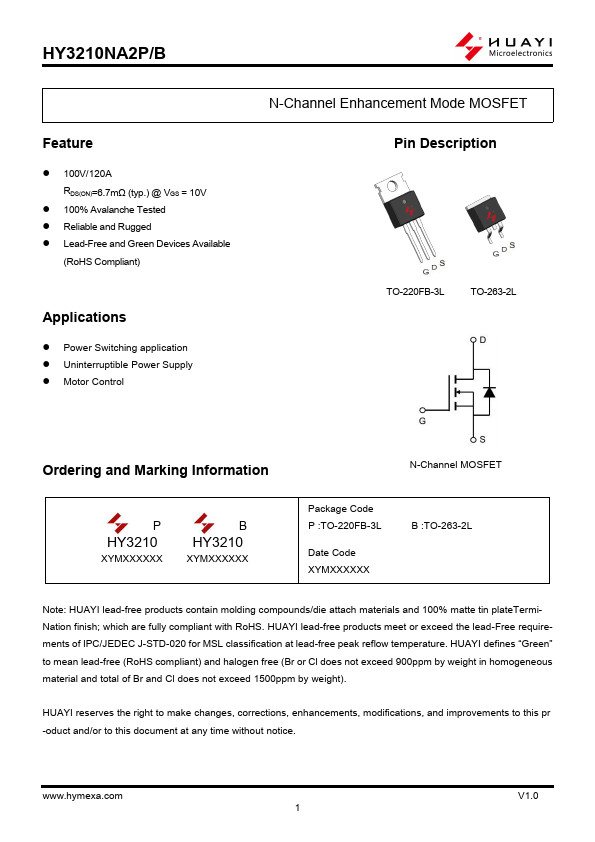

Preview of HY3210NA2P PDF

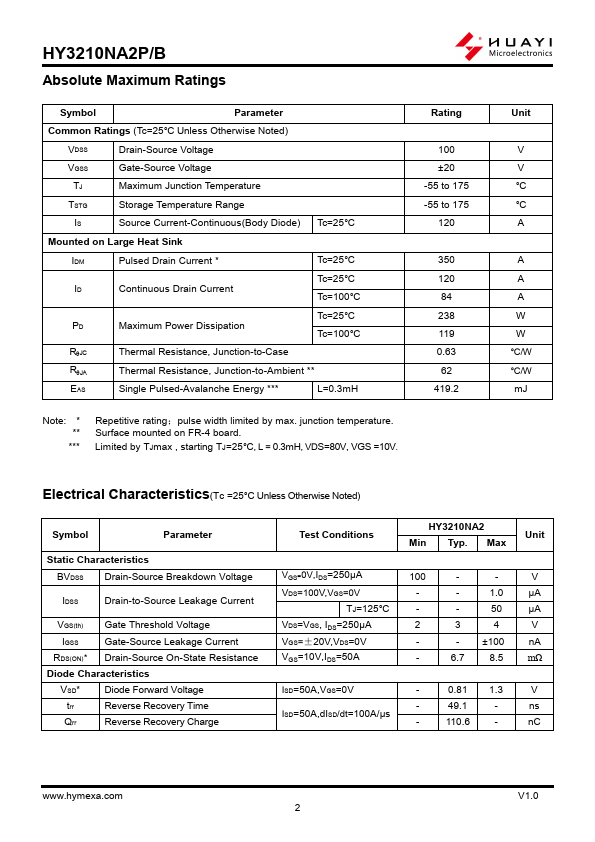

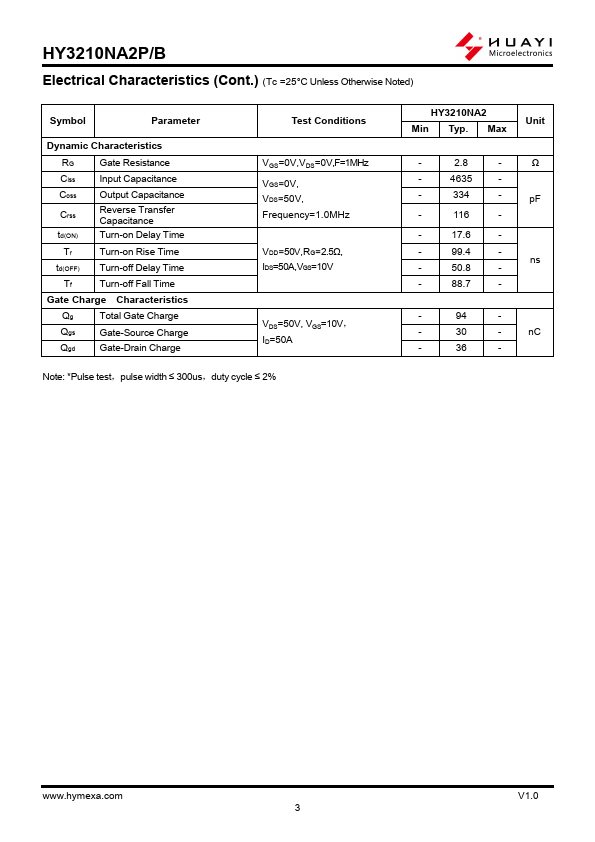

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY3210NA2P
Manufacturer
HUAYI
File Size
1.41 MB
Datasheet
HY3210NA2P-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET
