HY1606D - N-Channel Enhancement Mode MOSFET

HY1606D Description

HY1606D/U/V .
GDS TO-252-2L GDS TO-251-3L GDS TO-251-3L Applications. Power Management for Inverter Systems.

HY1606D Features

* 60V/66A, RDS(ON)=10.4 m(typ. ) @ VGS=10V
* Avalanche Rated
* Reliable and Rugged

HY1606D Applications

* Power Management for Inverter Systems. Ordering and Marking Information N-Channel MOSFET D U V HY1606 HY1606 HY1606 YYXXXJWW G YYXXXJWW G YYXXXJWW G Package Code D : TO-252-2L V : TO-251-3S Date Code YYXXX WW U : TO-251-3L Assembly Material G : Lead Free Device Note: HUAYI lead -free

📥 Download Datasheet

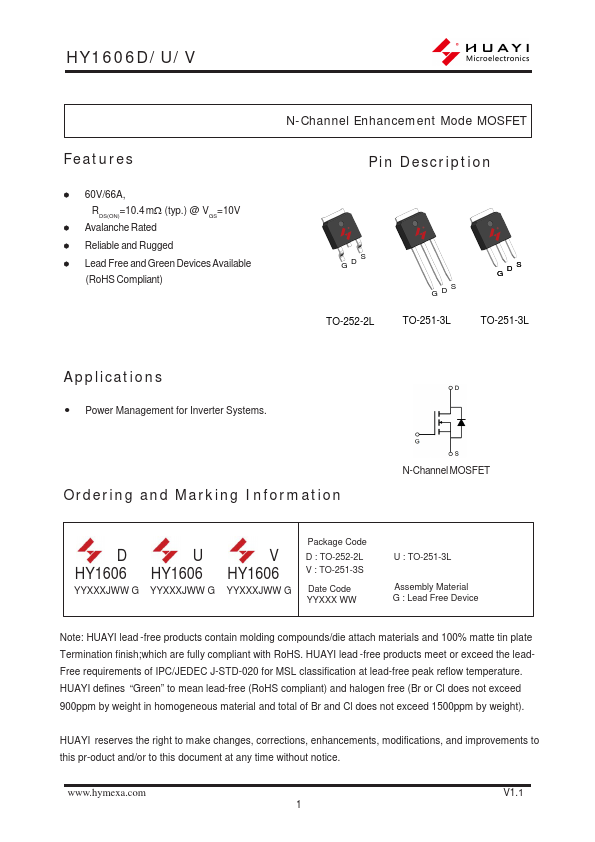

Preview of HY1606D PDF

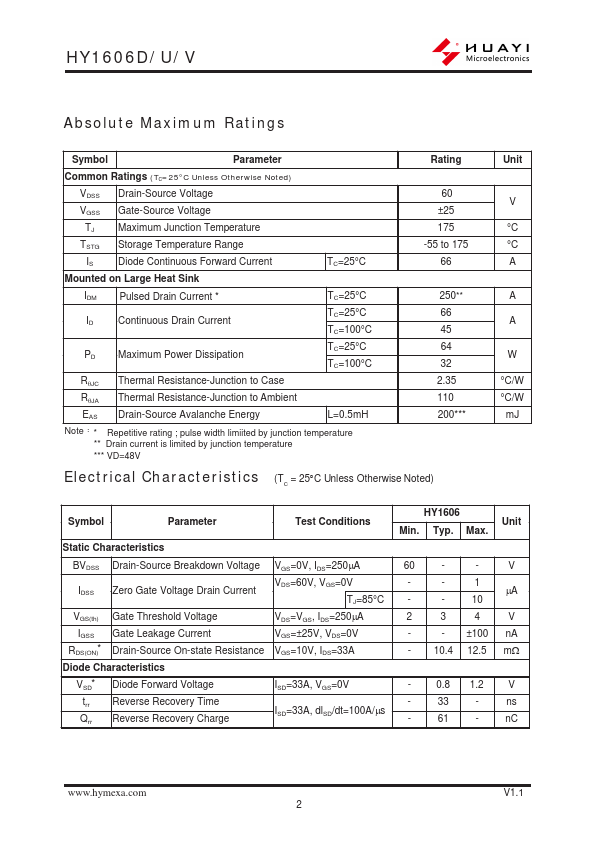

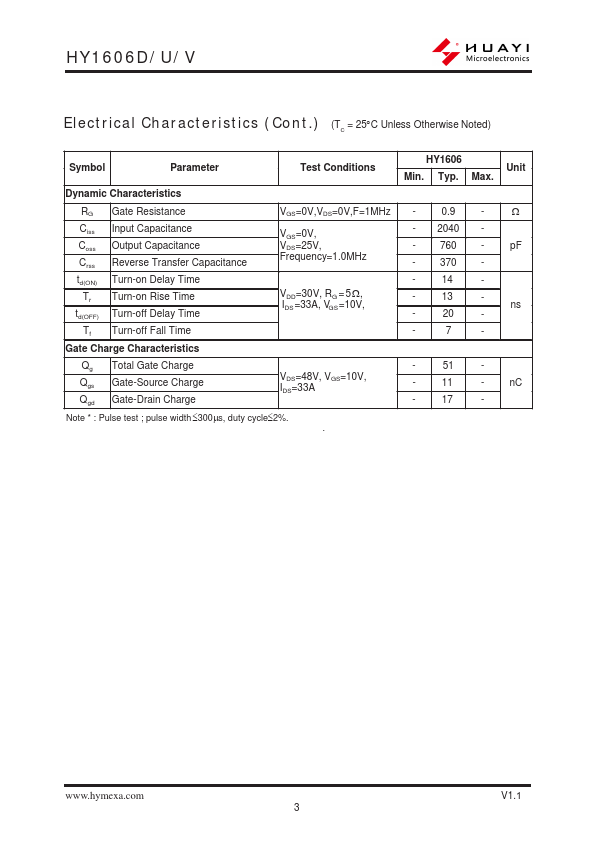

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY1606D
Manufacturer
HUAYI
File Size
842.85 KB
Datasheet
HY1606D-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET
