HAL2411S2, HAL0511S2 1-Line Uni-directional TVS Diode

HAL2411S2 Description

APPLICATION *Cellular Handsets and Accessories *Personal Digital Assistants *Notebooks and Handhelds *Portable Instrumentation *Se.

HAL2411S2 Features

* 300W peak pulse power (8/20us)
* Protects one bi-directional or two uni-directional line(s)
* Ultra low leakage: nA level
* Stand
* ff Voltage: 5 V ~ 36 V
* Ultra low clamping voltage Electrical Characteristics Parameter Peak Pulse Power (8/20μs) ESD per IEC 61000

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HAL2411S2, HAL0511S2. Please refer to the document for exact specifications by model.

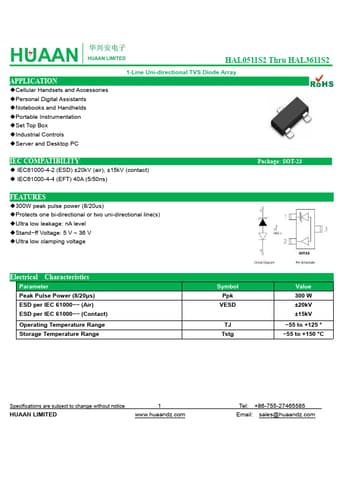

datasheet Preview Page 2

Datasheet Details

Part number
HAL2411S2, HAL0511S2
Manufacturer
HUAAN
File Size
282.32 KB
Datasheet
HAL0511S2-HUAAN.pdf
Description
1-Line Uni-directional TVS Diode
Note
This datasheet PDF includes multiple part numbers: HAL2411S2, HAL0511S2.
Please refer to the document for exact specifications by model.
